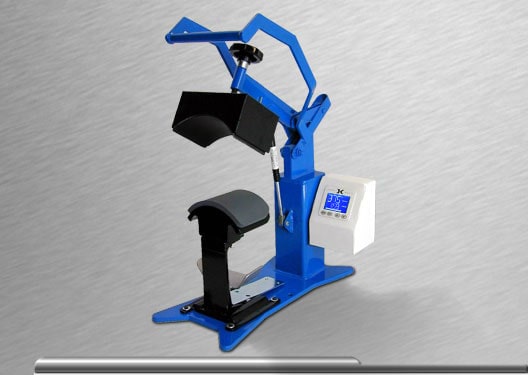

DK7 Cap Press $795.00

The DK7 Cap press is a fully functional cap press for printing the front face of any sized headwear.

The DK7 has a unique hold-down device that pulls the rear strap of the headwear down against the pressing surface, holding the cap in place.

The DK7 includes 3 different sized interchangeable tables (Standard & EURO & Youth sizes included)

 for accommodating everything from Large to Child sized caps, fitted and low-profile caps, and many other items.

Features

• STANDARD, EURO (mid-sized), and YOUTH bottom forms included!
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• 70 Programmable presets
• Hardened high-strength pivot points
• Solid Steel framework
• Self lifting gas-spring, & wide opening
• Cap hold-down device
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen

Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Weight: 50 Lbs
• Electrical: 450W / 4A / 110V
• Shipping Dims: 19"L x 12"W x 18"H
• Counter Footprint: 18"D x 8"W
• (add $35 for 220V international)

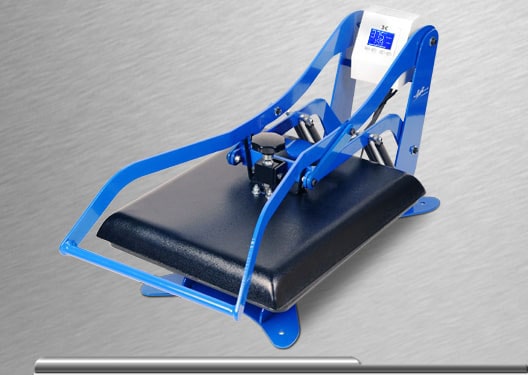

DK20 16x20 Clamshell $1450

Our largest clamshell, the 16x20 DK20 opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swing away presses.

The DK20 can be easily upgraded to an automatic release press with the "Pop-Up" upgrade. This allows for faster semi-automatic garment production at a very reasonable price. Add to this the twin station upgrade as well, and you have the ultimate clamshell dual station light production machine.

Features

• All-Thread™ table loading design
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Digital Pressure Bar Graph
• 70 Programmable presets
• Solid steel welded framework
• Instantly interchangeable & rotatable tables
• SuperCoil-Microwinding™heater technology
• Wide opening at back - no hand contact!
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen

Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Weight: 103 Lbs
• Electrical: 1800W / 15A / 110V
• Shipping Dims: 36"L x 17"W x 16"H
• Counter Footprint: 26"D x 14"W
• (add $35 for 220V international)

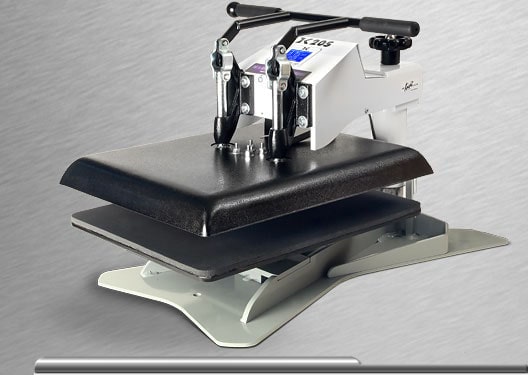

DK20S Swinger $1850

The Digital Knight DK20S is our 'flagship' 16x20 swing-away heat transfer press. The DK20S combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy to use electronics to provide the operator with the best possible features and equipment needed for today's various heat transfer applications.

This press is the most popular 16x20 machine in the industry. It is world-renowned as the top-end, robust-workhorse of all swing away heat presses. There is also a Jumbo sized 20x25 heat platen version of this press, the DK25S. An air-operated automatic version is also available: the DK20SP.

Features

• All-Thread™ table loading design
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Digital Pressure Bar Graph
• 70 Programmable presets
• Solid steel welded framework
• Instantly interchangeable & rotatable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen

Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Weight: 200 Lbs
• Electrical: 1800W / 15A / 120V
• Shipping Dims: 40"D x 18"W x 16"H
• Counter Footprint: 27"D x 16"W
• (add $35 for 220V international)

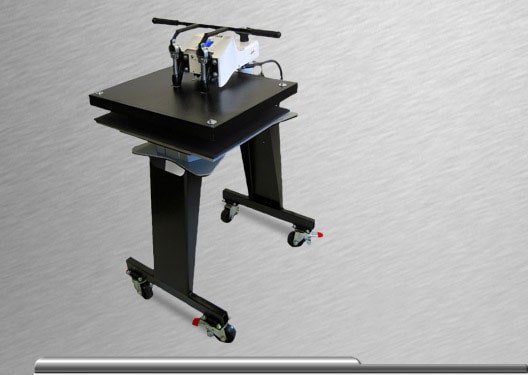

DK25S 20x25 jumbo swinger $3950

The Digital Knight DK25S is a 20x25 swing-away heat transfer press. The DK25S combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy to use electronics to provide the operator with the best possible features and equipment needed for today's various heat transfer applications. It also features the universal stand with locking casters, and a 220V circuit breaker panel mounted to the stand. This press is well known in the industry as the top-end robust workhorse of all swing away heat presses. The DK25S is also available in an air-operated automatic version, the DK25SP. Ask us for details!

Features

• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• 70 Programmable presets
• Solid steel welded framework
• Interchangeable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done

Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Weight: 440 Lbs
• Electrical: 4500W / 21A / 220V(only)
• Shipping Dims: 36"D x 36"W x 48"H
• Floor Footprint: 32"D x 24"W

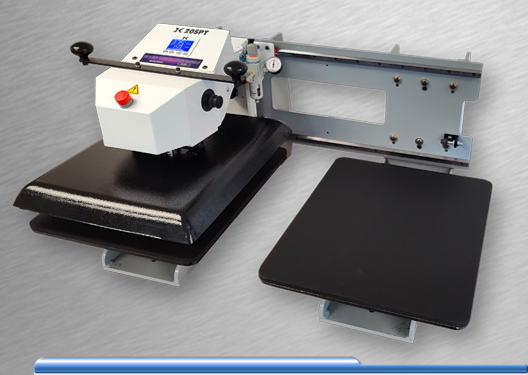

DK20SPT 16x20 TWIN Air Auto $4950

The DK20SPT is the Same Overall press as the DK20SP, with the Same Features of the DK20SP, but in a **dual-shuttle twin-station** framework for increased operator production.

While one side is pressing, the operator can load and unload the other side, and greatly reduce both operator idle time and heat platen idle time.

Like the DK20SP single-table version, the DK20SPT has the same benefits of simple push button operation, fully digital temperature & time control, interchangeable All-Thread™ bottom tables, and solid casting design with an affordable automatic heat press price. It is available in a 16" x 20" heater block size.

For demanding press runs and super consistent results, the DK20SPT is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle, as well as what a single loading table layout can provide. The DK20SPT is the industrial grade midrange solution between heavy duty manual heat presses such as the DK20 and DK20S and high production 394 Factory Shuttle Press machines.

Features

• TWIN All-Thread™ table loading design
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-100 PSI range (compressor req)
• Total applied force of 3000 lbs max
• 70 Programmable presets
• Solid steel welded framework
• Interchangeable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 1.5" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen

Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Air Compressor Required (min): 7gal, 1cfm, 100psi, 1/4" line
• Weight: 270 Lbs
• Electrical: 1800W / 15A / 120V
• Shipping Dims: 32" D x 40" W x 24" H
• (add $35 for 220V international)
